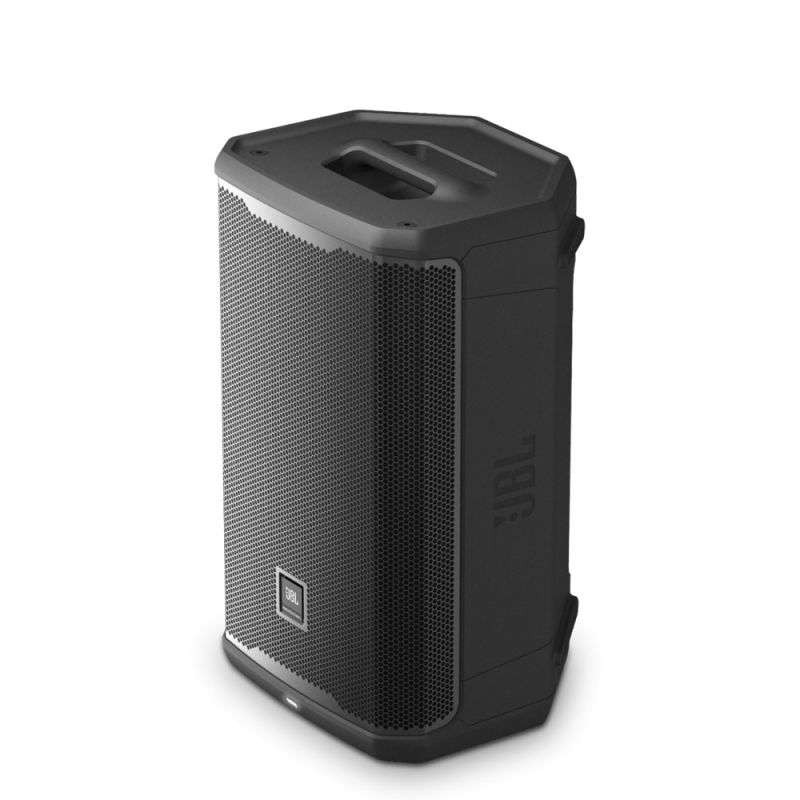

Configuration: 2‑way powered loudspeaker

Woofer: 8″ ferrite magnet (model 908G)

High‑frequency driver: 1.5″ JBL 2408H‑2 compression driver

Amplifier power: 1,000 W RMS / 2,000 W peak

Frequency response: 65 Hz to 20 kHz (±3 dB)

Extended response: 55 Hz to 20 kHz (–10 dB)

Maximum SPL (peak): 126 dB

Dispersion / coverage: 105° horizontal × 60° vertical

Crossover frequency: ~1,930 Hz

Inputs / Outputs: 2 × combo XLR / TRS, 1 × 3.5 mm aux, 2 × XLR loop‑through, 1 × XLR mix out

DSP & controls: 12‑band parametric EQ, presets, speaker delay (up to 180 ms), feedback suppression (via dbx DriveRack tech)

Cabinet: polypropylene / talcum composite, internally ribbed for rigidity

Mounting / rigging: dual 36 mm pole sockets, six M10 suspension points

Latency: < 1 ms

Operation: fanless (passive cooling)

Weight: 13.7 kg

Dimensions (H × W × D): 479 × 312 × 285 mm
