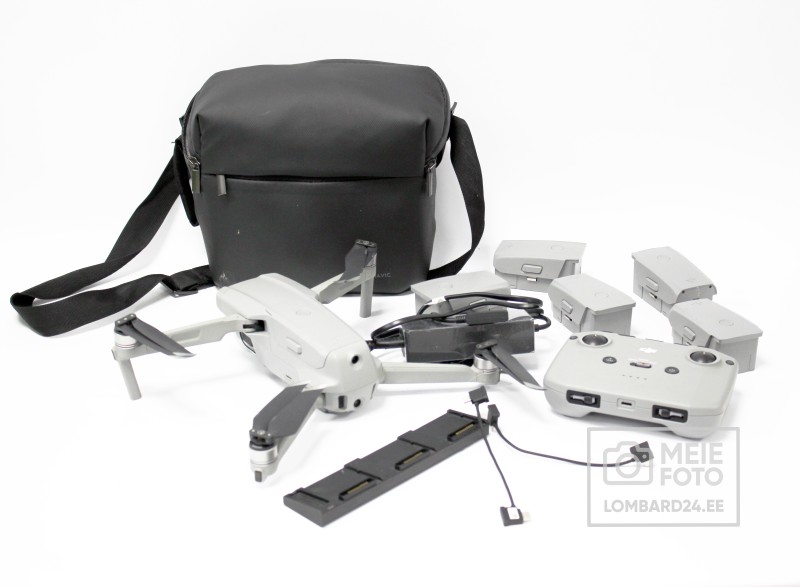

DJI Mavic Air 2 Fly More Combo

Folded: 180×97×84 mm

Unfolded: 183×253×77 mm

Diagonal Distance 302 mm

Max Ascent Speed 4 m/s (S Mode) / 4 m/s (N Mode)

Max Descent Speed

3 m/s (S Mode) / 3 m/s (N Mode) / 5 m/s (S Mode and N Mode during a sharp descent) / 3 m/s (all modes at elevations over 4500 m)

Max Service Ceiling Above Sea Level 5000 m

Max Flight Time (without wind) 34 minutes

Max Hover Time (without wind) 33 minutes

Max Flight Distance 18.5 km

Max Horizontal Flight Speed 19 m/s (S Mode) 12 m/s (N Mode) / 5 m/s (T Mode)

Max Wind Resistance 8.5-10.5 m/s (Level 5)

Max Pitch Angle 35° (S Mode) / 20° (N Mode) / 35° (N Mode under strong wind)

Max Angular Velocity 250°/s (S Mode) / 250°/s (N Mode)

Operating Temperature Range -10° to 40°C (14° to 104°F)

Operating Frequency 2.400-2.4835 GHz / 5.725-5.850 GHz

Transmitter Power (EIRP) 2.400-2.4835 GHz: FCC: ≤26 dBm CE: ≤20 dBm SRRC: ≤20 dBm MIC: ≤20 dBm 5.725-5.850 GHz: FCC: ≤26 dBm CE: ≤14 dBm SRRC: ≤26 dBm

Hovering Accuracy Range

Vertical:

±0.1 m (with vision positioning)

±0.5 m (with GPS positioning)

Horizontal:

±0.1 m (with vision positioning)

±1.5 m (with GPS positioning)

Quick release, low noise, folding

Satellite Systems

GPS+GLONASS

Compass

Single Compass

IMU

Single IMU

Internal Storage

8 GB

Battery

Capacity

3500 mAh

Voltage

11.55 V

Charging Voltage Limit

13.2 V

Battery Type

LiPo 3S

Energy

40.42 Wh

Weight

198 g

Charging Temperature

5° to 40°C (41° to 104°F)

Max Charging Power

38 W

Camera

Sensor

1/2" CMOS

Effective Pixels: 12 MP and 48 MP

Lens

FOV: 84°

Equivalent Focal Length: 24 mm

Aperture: f/2.8

Focus Range: 1 m to ∞

ISO

Video:

100-6400

Photo (12 MP):

100-3200 (Auto)

100-6400 (Manual)

Photo (48 MP):

100-1600 (Auto)

100-3200 (Manual)

Max Photo Resolution

48 MP 8000×6000 pixel

Photo Modes

Single: 12 MP and 48 MP

Burst: 12 MP, 3/5/7 frames

Automatic Exposure Bracketing (AEB): 12MP, 3/5 Frames at 0.7EV Bias

Timed: 12 MP 2/3/5/7/10/15/20/30/60 seconds

SmartPhoto: Scene Recognition, HyperLight, and HDR

HDR Panorama[1]:

Vertical (3×1): 3328×8000 pixels (Width×Height)

Wide-angle (3×3): 8000×6144 pixels (Width×Height)

180° Panorama (3×7): 8192×3500 pixels (Width×Height)

Sphere (3×8+1): 8192×4096 pixels (Width×Height)

Photo Formats

JPEG/DNG (RAW)

Video Resolution and Frame Rates

4K Ultra HD: 3840×2160 24/25/30/48/50/60 fps

2.7K: 2688×1512 24/25/30/48/50/60 fps

FHD: 1920×1080 24/25/30/48/50/60/120/240 fps

4K Ultra HD HDR: 3840×2160 24/25/30 fps

2.7K HDR: 2688×1512 24/25/30 fps

FHD HDR: 1920×1080 24/25/30 fps

Color Profiles

D-Cinelike, Normal

Video Formats

MP4/MOV (H.264/MPEG-4 AVC, H.265/HEVC)

Max Bitrate

120 Mbps

Supported SD Cards

Supports a microSD with capacity of up to 256 GB

Supported File Systems

FAT32 and exFAT

Zoom

Available

Gimbal

Stabilization

3-axis (tilt, roll, pan)

Mechanical Range

Tilt: -135° to 45°

Roll: -45° to 45°

Pan: -100° to 100°

Controllable Range

Tilt: -90° to 0° (Default)

-90° to 24° (Extended)

Max Controllable Speed (tilt)

100°/s

Angular Vibration Range

±0.01°

Vision System

Forward

Precision Measurement Range: 0.35-22.0 m

Detection Range: 0.35 to 44 m

Effective Sensing Speed: 12 m/s

Field of View (FOV):

71° (horizontal), 56° (vertical)

Backward

Precision Measurement Range: 0.37-23.6 m

Detection Range: 0.37-47.2 m

Effective Sensing Speed: 12 m/s

Field of View (FOV):

57° (horizontal), 44° (vertical)

Available Downward Sensors

Dual Vision Sensors + Time of Flight Sensors (ToF)

Downward

ToF Measurement Range: 0.1-8 m

Hovering Range: 0.5-30 m

Vision Sensor Hovering Range: 0.5-60 m

Left/Right

None

Downward Auxillary Light

Single LED

Safety

Obstacle Avoidance System

Advanced Pilot Assistance Systems (APAS) 3.0

Video Transmission

Transmission System

OcuSync 2.0

2.4 GHz/5.8 GHz Auto-Switching

Max Transmission Distance

10 km (FCC), 6 km (CE), 6 km (SRRC), 6 km (MIC)

Live View Quality

720p@30fps/1080@p30fps

Latency (depending on environmental conditions and mobile device)

120-130 ms

Video Transmission Encoding format

H.265/H.264 (Auto-switches depending on encoding capabilities of device)

Max Transmission Bitrate

12 Mbps

Operating Frequency

2.400-2.4835 GHz

5.725-5.850 GHz

Supported Mobile Device Connectors

Lightning, Micro USB, USB Type-C

Max. Supported Mobile Device Size

180×86×10 mm (Height×Width×Thickness)

Operating Temperature

-10° to 40°C (14° to 104°F)

Transmitter Power (EIRP)

2.400-2.4835 GHz:

<26 dBm (FCC), <20 dBm (CE/SRRC/MIC)

5.725-5.850 GHz:

<26 dBm (FCC), <23 dBm (SRRC), <14 dBm (CE)

Charger

Charging Input

100-240 V, 50/60 Hz, 1.3 A

Charging Output

Charging Port: 13.2 V⎓2.82 A

USB Port: 5 V⎓2 A

Voltage

13.2 V

Rated Power

38 W
